RFID Inlay / Prelams

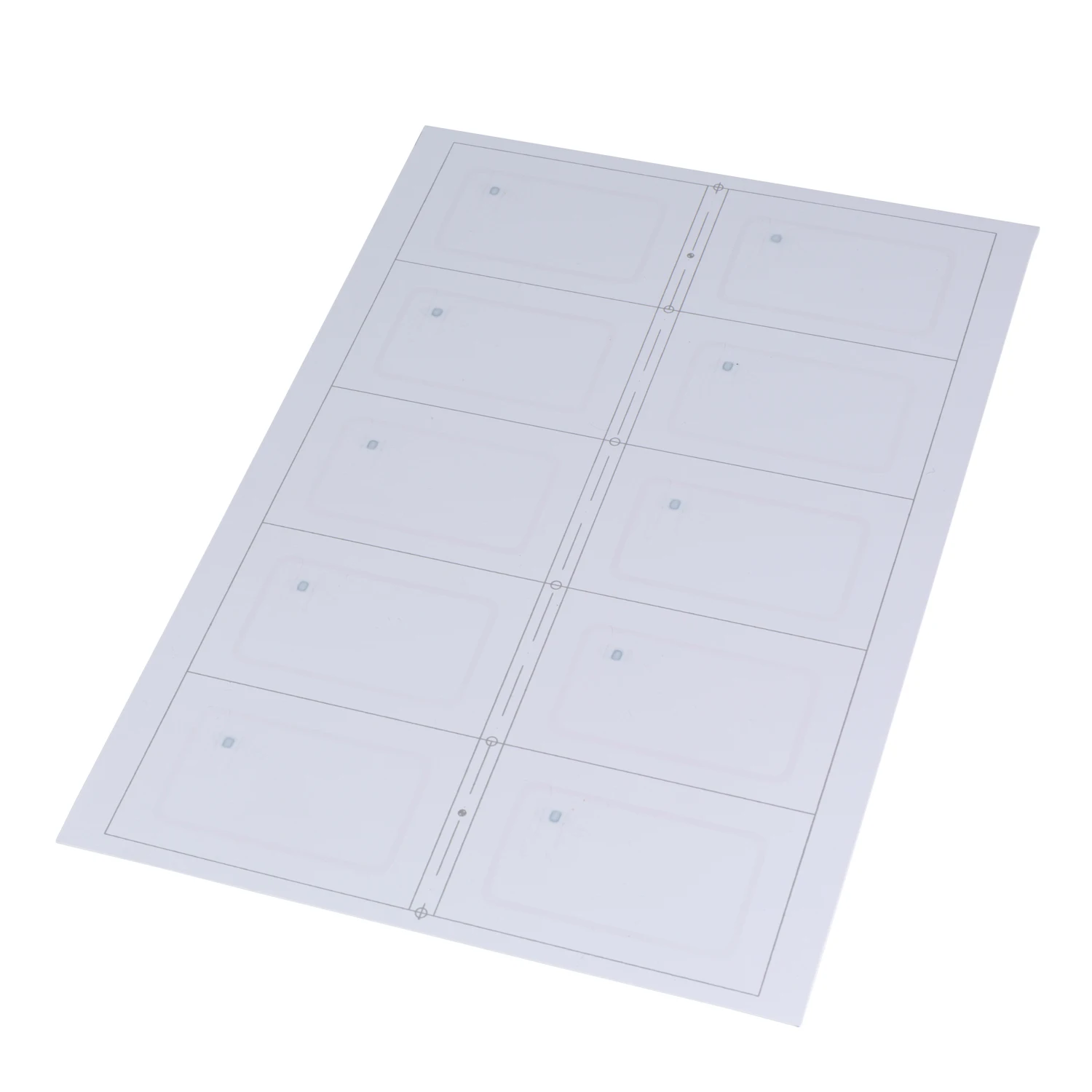

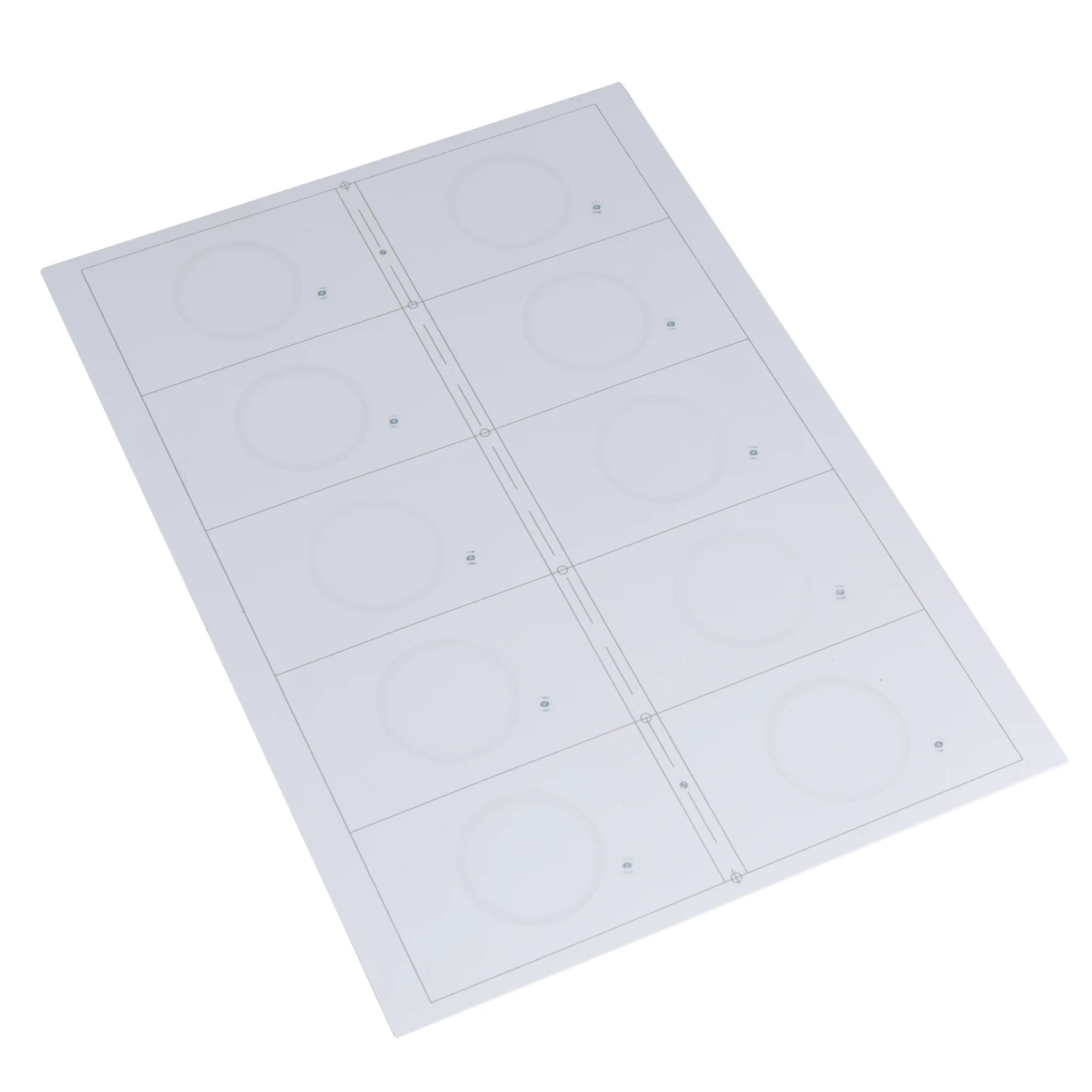

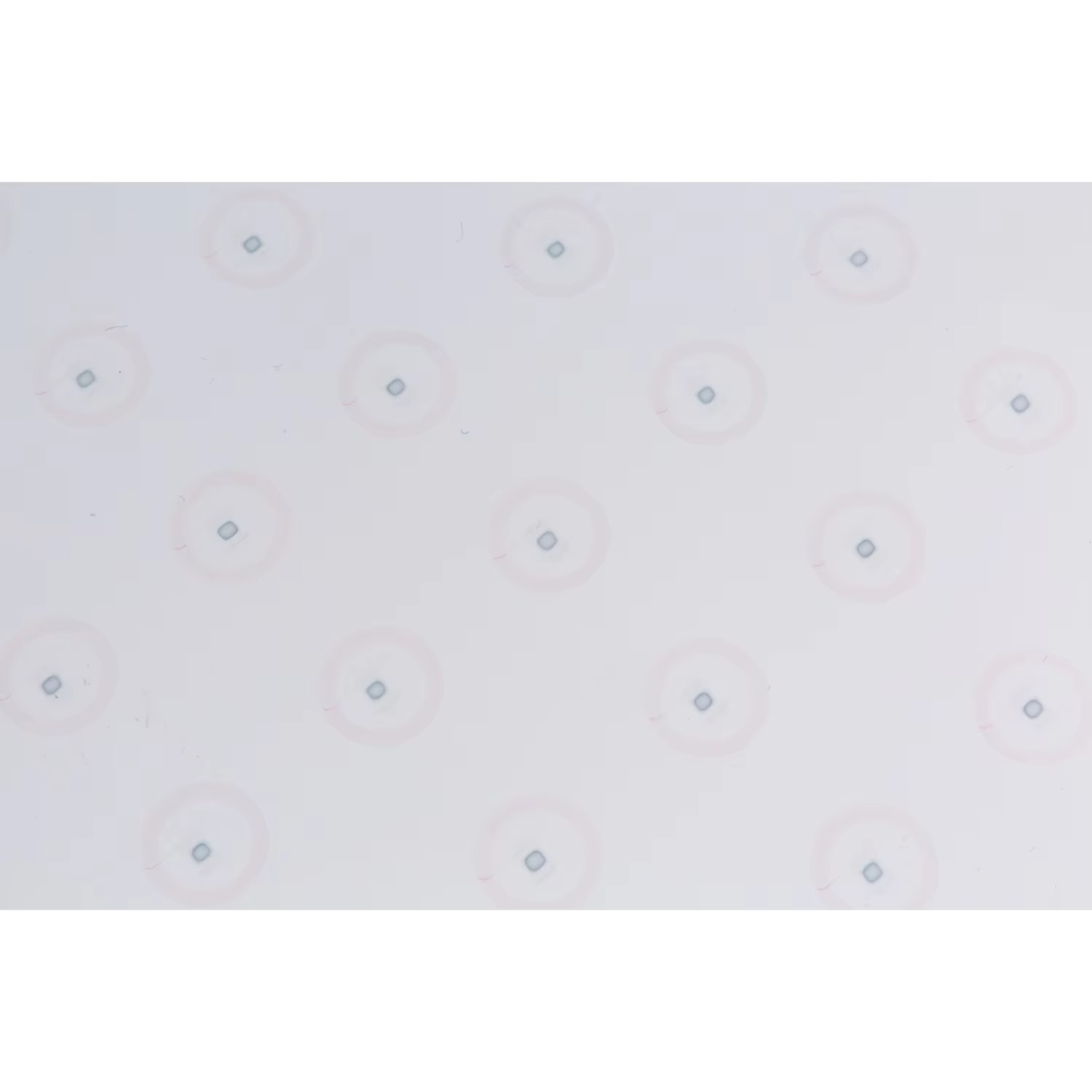

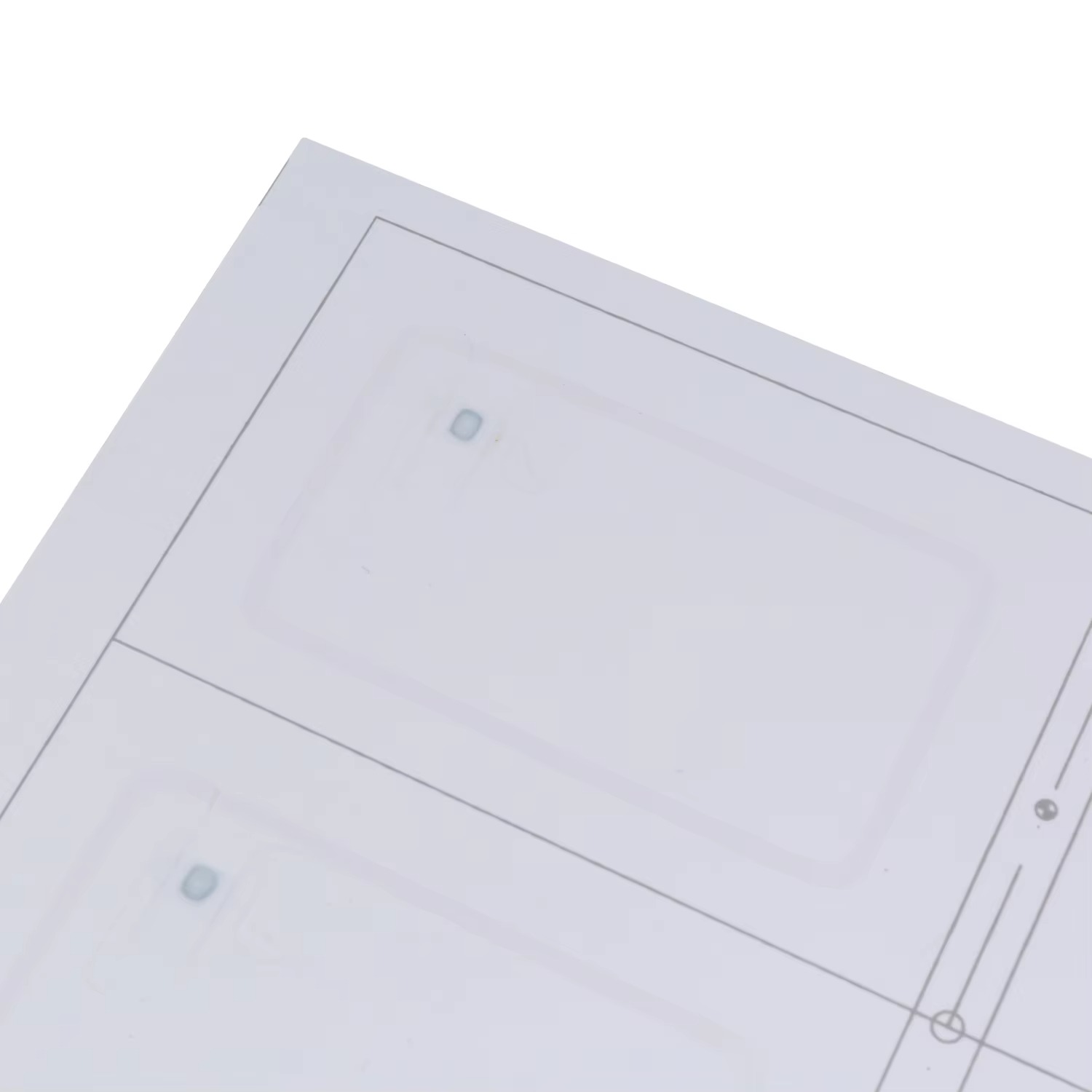

RFID card inlays, also known as prelaminates (prelams), are semi-finished sheets that embed RFID chips and antennas between plastic layers. They are the core component used to manufacture finished RFID cards such as access cards, transportation cards, payment cards, hotel key cards, and ID badges.

PC Card Film/Sheet
Property	Standard Values
Size:	CR80 30mil credit card size or customized
Dimension:	85.5*54 mm or customized
Thickness:	0.45-0.6mm
Chip type & Memory:	TK4100, EM4200, MIFARE(R) Classic 1K, MIFARE(R) Classic 4K , F08, NTAG 213/215/216, Ultralight, Topaz512 etc
Frequency:	125 KHz /13.56 MHz / 860-960MHz
Read distance:	1-10 cm ( depends on reader and working environment )
Materials:	PVC, PET, PC, PETG, ABS...
Life Time:	5-10 years

Key Features

1. Integrated Chip & Antenna Structure

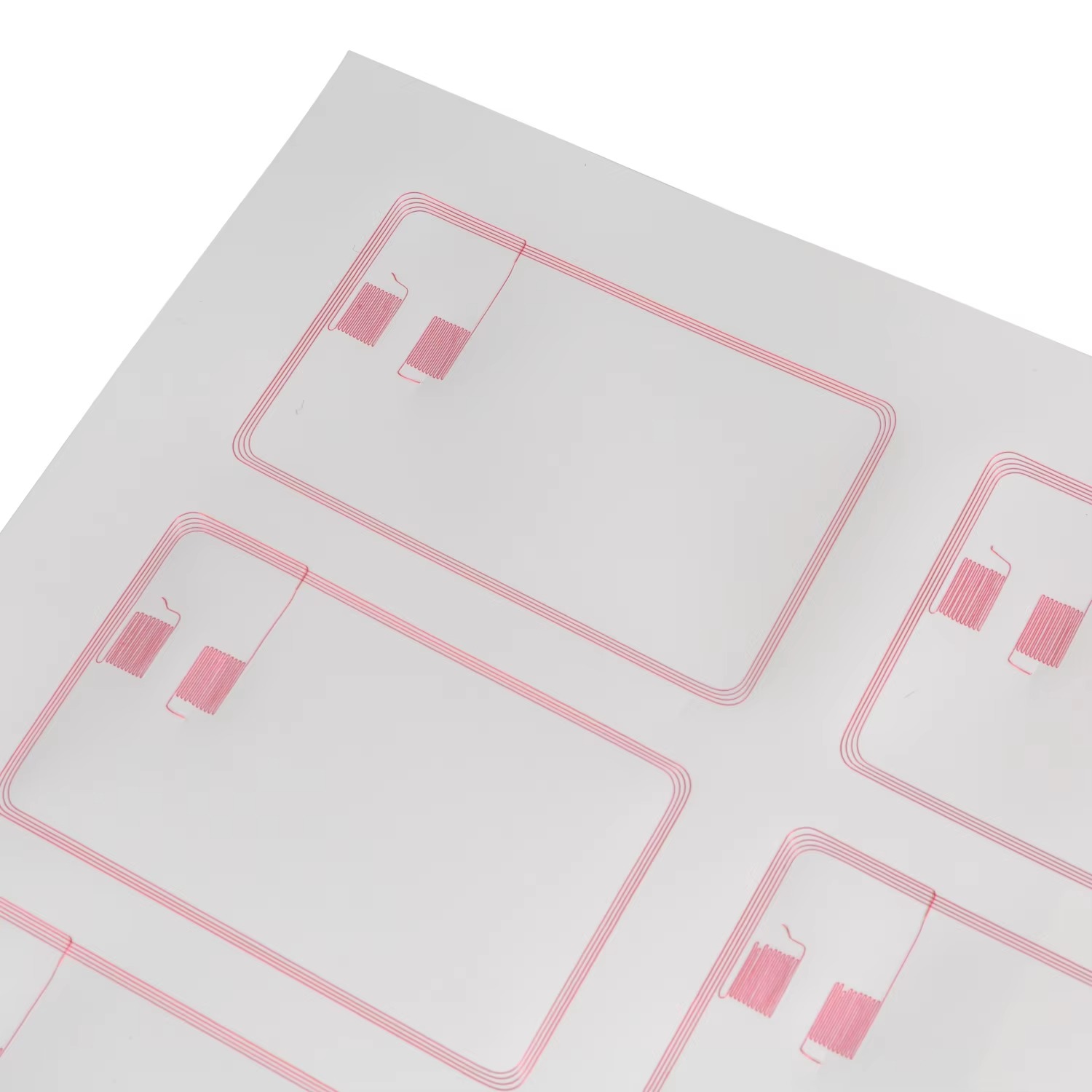

Each inlay contains an RFID IC chip bonded to a copper or aluminum antenna coil.
Ensures stable communication, low power consumption, and consistent read/write performance.

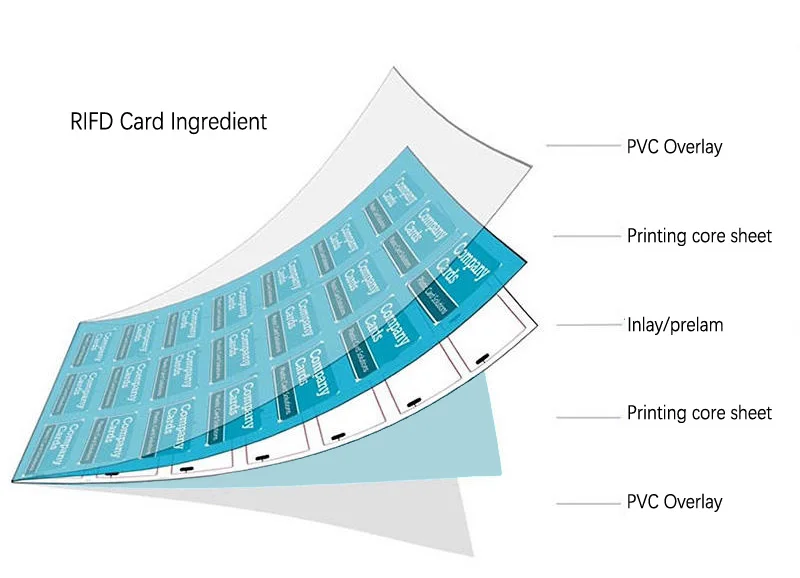

2. Multi-Layer Lamination Design
Prelams are typically made with PVC, PET, PETG, or polycarbonate (PC) sheets.
Layers are pre-laminated under heat and pressure to create a strong and durable core.
3. High Durability & Stability
Resistant to bending, heat, and environmental stress.
Long chip/antenna lifespan with strong lamination bond.
4. Precision Manufacturing
Antenna alignment, chip positioning, and layer uniformity follow strict standards to ensure card-level reliability.
Ideal for high-speed lamination and card punching.

Frequency Types

HF (13.56 MHz)

MIFARE®, NTAG®, DESFire®, etc.

LF (125 kHz)

EM4200, TK4100, etc.

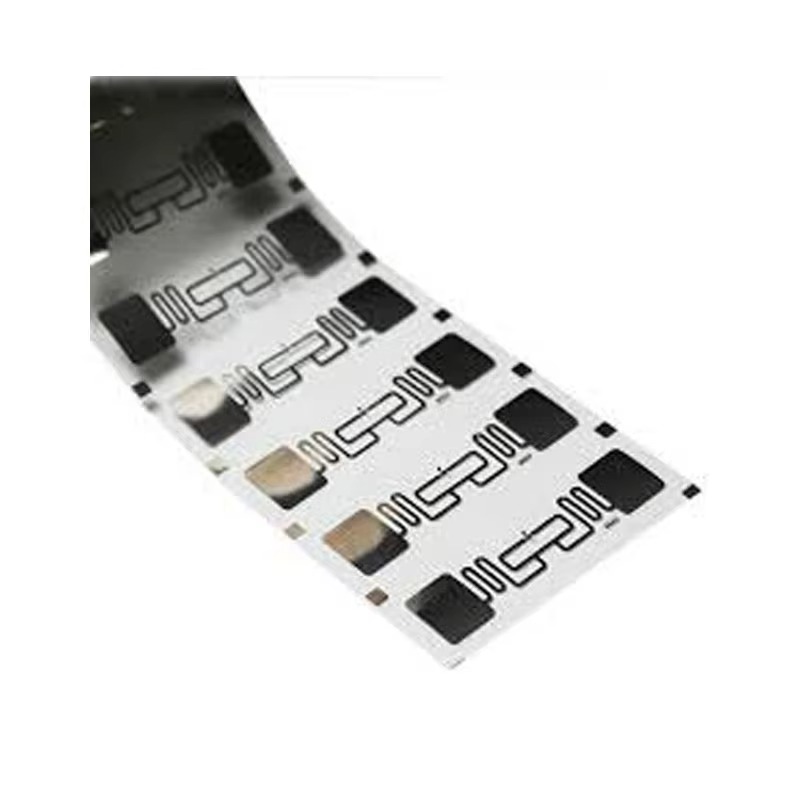

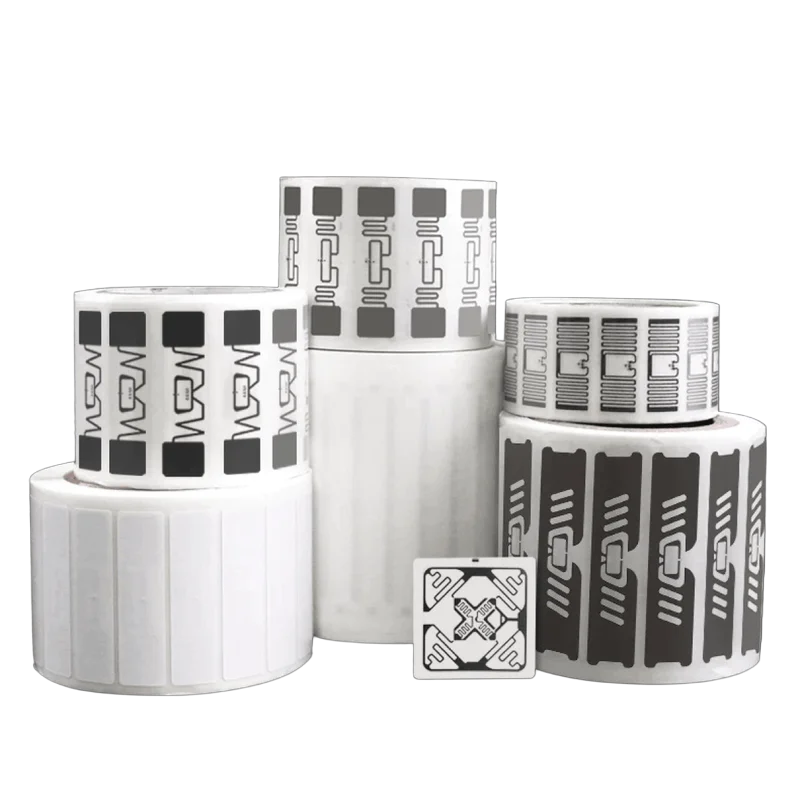

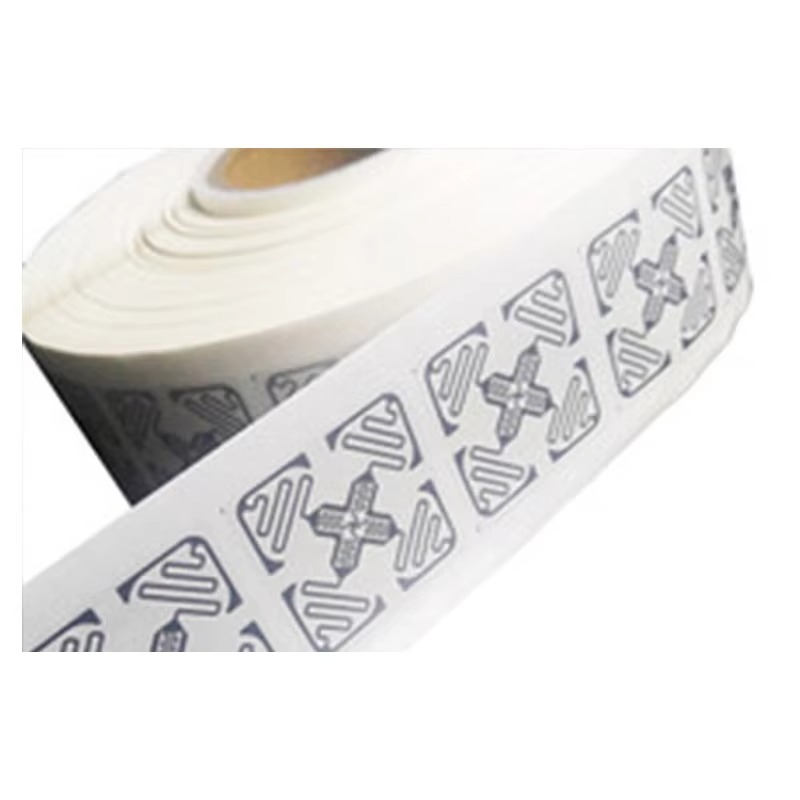

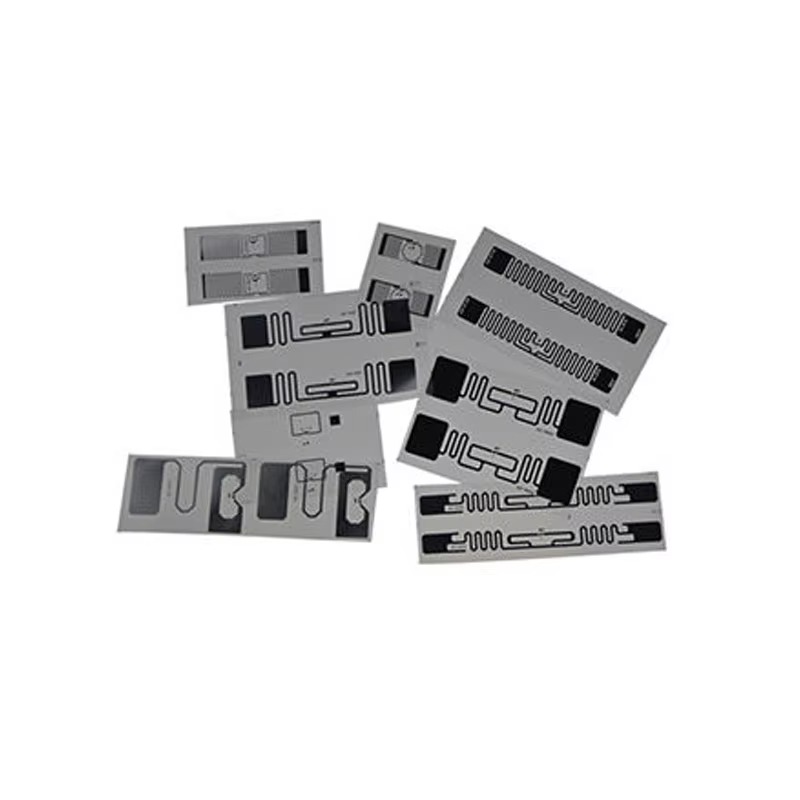

UHF (860–960 MHz)

EPC Gen2, long-distance reading.

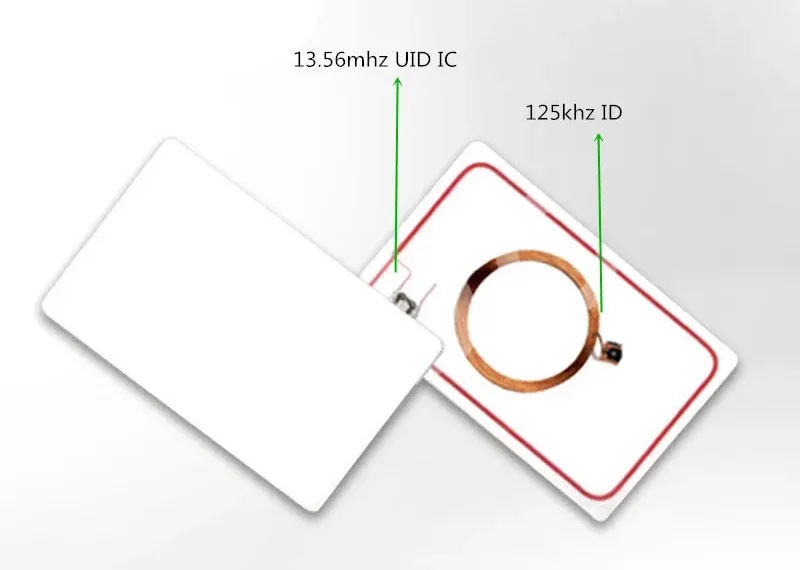

Dual Chip

13.56Mhz CUID and 125Khz EM4100/T5577

Application

Access control cards
Smart transportation cards
Hotel room key cards
Membership and loyalty cards
Government, campus, or corporate ID cards
E-payment or stored-value cards
